产品中心Products

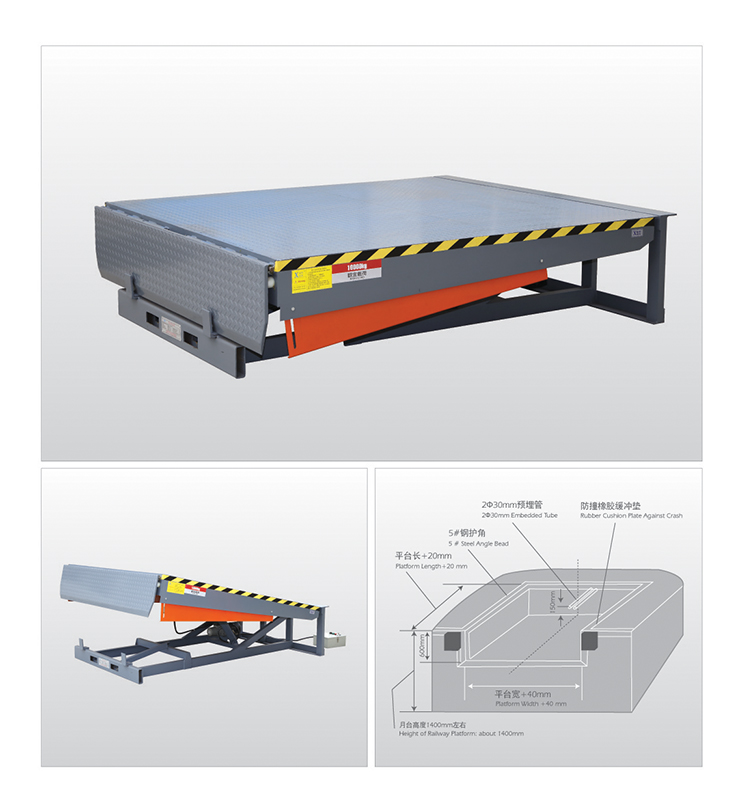

固定登车桥

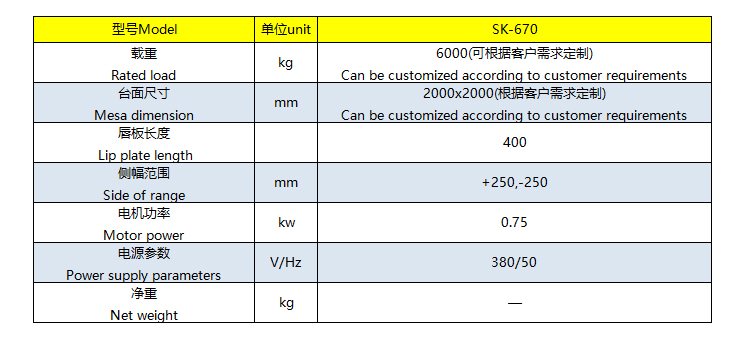

载重:6000-10000KG
台面尺寸:根据客户要求定制
倾幅范围:+250mm,-250mm
电源电压:AC380V/50HZ

森觅售后服务说明

◆森觅售后服务按保修类型可分为:

A.保修期内售后服务

森觅提供的保修期内售后服务是指自货物出厂之日起12个月。需森觅现场安装的,自产品安装验收结束第二日起12个月。保修期内客户享受森觅标准保修期内的维修级别和响应速度;

B.保修期外售后服务

保修期外服务是指用户的产品已出保修期。对于保修期外服务森觅将收维修劳务费和相关备件成本费用;

C.增值售后服务

增值售后服务是指森觅与用户在基础保修服务之外签署的由森觅指定的授权合作伙伴进行的维修或保养服务,此服务需要单独签署服务协议。了解具体服务内容可以致电森觅客户服务中心,服务热线:18521512386;

◆森觅售后服务按服务级别可分为:

A. 送修售后服务

送修服务是指用户把有故障的整机送至森觅售后服务中心或指定的售后服务点,完成维修后,售后服务点将通知用户到售后服务点处取机。 维修周期:在上海、江苏、浙江3个城市,维修周期一般为三个工作日;在其它城市维修周期为四到七个工作日;

B.第二个工作日现场售后服务

第二个工作日现场服务是指在中国森觅办公时间里,用户可通过专线电话联络中国森觅用户响应中心的专业工程师,作即时电话诊断,如有需要,森觅的工程师将在第二个工作日提供上门服务。若用户距离森觅售后服务点40公里以上, 森觅售后服务点的工程师到场响应时间将按交通情况适当延长;

C. 7*24*4现场售后服务

7*24*4现场服务是指用户可全天24小时通过专线电话联络中国森觅用户响应中心的专业工程师,以便及时咨询诊断并解决问题,在做出故障问题的初步判断后,如有需要,森觅售后服务工程师将在4小时内上门服务。中国森觅有限公司将管理服务质量并跟踪服务过程,以便调动更多资源为用户服务。此项服务目前只适用于当地设有售后服务专署备件库的城市及其周边地区。若用户距离中国森觅售后服务商40公里以上,中国森觅售后服务商的工程师到场响应时间将按交通情况适当延长;

D. 24小时修复服务

400免费电话技术支持 森觅专门为客户设置了带有客户代码识别的400免费技术支持热线,最终客户在任何时间需要技术支持都可以通过森觅 400免费技术支持热线联系到孚沐客户支持中心,从而确保客户可以享受到的高级别响应服务,电话号码是:400-865-5613; 森觅热线工程师将在第一时间为客户提供必要的技术支持,确定问题所在并解决问题,如果需要现场支持,将安排服务工程师提供现场服务。

产品特点:
 ●电控操作极其简单,只需按动按钮调节板会自动升起;松开按钮,调节板靠自重下降,活页搭板搭在货车上即可使用;
 ●液压系统采用意大利原装进口的优质品牌产品,性能卓越,极少维修;
 ●通过动力系统,大油缸升起整个斜板,至顶位时小油缸开始工作,顺畅伸出活页搭板;
 ●调节板底座前面为开放式设计,清理杂物方便快捷;
 ●独特设计的"工"字钢骨架能平均承托压力,且减少骨架的扭力,比其他槽钢结构更坚固、 耐用;
 ●整机表面经过抛丸处理,油漆均采用2底2面喷涂;
 ●系统的控制电压为24V,保证设备和操作人员的安全;
 ●装有维修支撑杆,在维护、保养和清洁时,用维修支撑杆支撑起调节板,更加安全可靠;
 ●调节板两侧分别有3块活动板,可有效避免调节板下降时压伤脚趾的危险,以确保安全;


Product features:
 ●Electrical control operation is very simple just press the button adjustment board will automatically rise; Release the button and the adjusting plate will fall by the dead weight.
 ●Hydraulic system USES Italian original imported quality brand products excellent performance few maintenance;
 ●Through the power system the large oil cylinder rises the entire inclined plate and when it reaches the top position the small oil cylinder starts to work extending the sheet plate smoothly.
 ●The front of the adjustment plate base is open design so it is convenient to clear debris.
 ●Unique design of the "work" steel skeleton can support the pressure on average and reduce the torque of the skeleton than other channel steel structure more solid and durable;
 ●The surface of the machine is shot blasting and the paint is sprayed on 2 surfaces.
 ●The control voltage of the system is 24V to ensure the safety of equipment and operators;
 ●Is installed with maintenance support bar when maintenance maintenance and cleaning with maintenance support bar support adjustment board more safe and reliable;
 ●As there are 3 movable plates on both sides of adjustment board it can effectively avoid the risk of crushing toe when the adjustment board drops so as to ensure safety.
